Nuclear Complex Co-IP Kit

simplified co-immunoprecipitation of nuclear protein complexes

Co-immunoprecipitation (Co-IP) is often used to study the relationships between nuclear protein complexes and nuclear processes such as intracellular signaling and transcriptional regulation. However, because these interactions are often labile and the proteins & their modifications can be fragile, traditional methods to isolate and study DNA-binding proteins often lead to disruption of nuclear complexes and a loss of protein integrity. Active Motif’s Nuclear Complex Co-IP Kit improves Co-IP by providing a gentle extraction procedure and optimized immunoprecipitation reagents that enhance the recovery of intact nuclear protein complexes.

For a complete list of reagents included in the Nuclear Complex Co-IP kit, please select the Contents tab below. For optimization of your Co-IP conditions, additional 5X IP High Buffer, 5X IP Low Buffer and Detergent may be purchased separately.

Antibody binding beads are NOT included in the Nuclear Complex Co-IP Kit and must be supplied by the user. Active Motif recommends our Protein G Agarose Columns for easy and efficient capture of the IP complex. The Protein G Agarose Columns contain pre-washed protein G agarose beads that have been specifically engineered to reduce non-specific binding. The beads are provided in ready to use filtration columns that streamline the antibody binding, wash and elution steps.

Co-IP of highly pure, intact nuclear protein complexes

  • Efficient Protocol: Simple and easy to use
  • Accuracy: Extraction procedure preserves nuclear protein complexes without disrupting protein/protein interactions
  • Flexibility: Immunoprecipitation reagents enable detection of protein/protein interactions of varying strength
  • Convenient: No need for creating fusion constructs or two-hybrid libraries

For a limited time, get 20% Off Your Next Nuclear Co-IP Kit. Simply reference the code CoIPKit2017 when you place your order*. See the Terms & Conditions listed below, this offer is valid until December 31, 2017.

*TERMS & CONDITIONS: This offer is valid on a single order in the United States and Canada through August 31, 2017. Offer may not be applied to existing, pending, or prior orders. Cannot be combined with any other promotions or discounts. Limit 1 promotion per order. Promotion code must be referenced when placing your order.


Name Format Cat No. Price
Nuclear Complex Co-IP Kit 50 rxns 54001 ¥4,857.50 Buy Now
Protein G Agarose Columns 30 rxns 53039 ¥4,785 Buy Now
5 rxns 53037 ¥1,015 Buy Now
5X IP High Buffer 25 ml 37510 ¥942.50 Buy Now
5X IP Low Buffer 25 ml 37511 ¥942.50 Buy Now
Detergent 25 ml 37517 ¥942.50 Buy Now

Co-Immunoprecipitation (Co-IP) is a powerful method used to study protein/protein interactions. In Co-IP, one antibody is used to immunoprecipitate a target antigen and also co-precipitate any bound interacting proteins within a sample. This complex is then detected by Western blot using a second antibody targeted against one of the bound interacting proteins. However, traditional Co-IP methods are not optimal for studying DNA-binding protein complexes as these complexes are often disrupted during the extraction process. In addition, unstable protein complexes are frequently affected by the salt and detergent composition of the buffers used in the immunoprecipitation process. The Nuclear Complex Co-IP Kit extraction and immunoprecipitation reagents were optimized to help maintain nuclear protein complexes, providing you with the best results possible.

The Nuclear Complex Co-IP method

In the Nuclear Complex Co-IP Kit method, nuclear extracts are prepared by collecting cells in ice-cold PBS with Phosphatase Inhibitors. Then, the cells are resuspended in Hypotonic Buffer to swell the cell membrane and make it fragile. Addition of Detergent causes leakage of the cytoplasmic proteins into the supernatant. After collection of the cytoplasmic fraction, the nuclei are lysed and the nuclear proteins are recovered in a low-salt buffer in the presence of the Protease Inhibitor Cocktail and PMSF. This is followed by the addition of a proprietary Enzymatic Shearing Cocktail. The use of low-salt buffers protects protein complexes in the nucleus; DNA digestion allows a gentle release of undissociated protein complexes from the DNA.

After the protein complexes are collected, an immunoprecipitation reaction is carried out to detect the bound proteins. Two different immunoprecipitation buffers with either a low or high stringency starting composition are provided. In addition, detergent and salt are provided separately to enable you to vary the salt and detergent concentrations. The addition of salt and detergent is ideal for use with robust protein/protein interactions because such conditions reduce background. However, as unstable protein complexes may not withstand high stringencies, the kit format enables stringency to be modified as required by each complex.

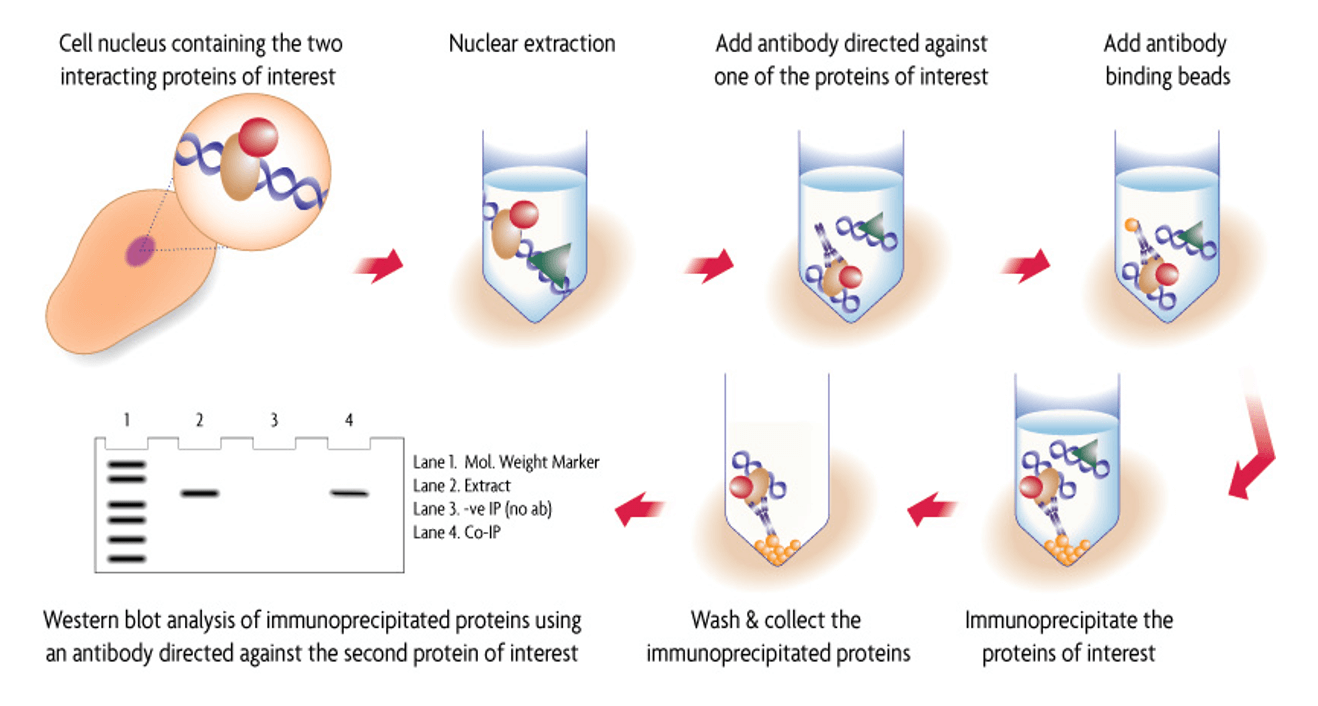

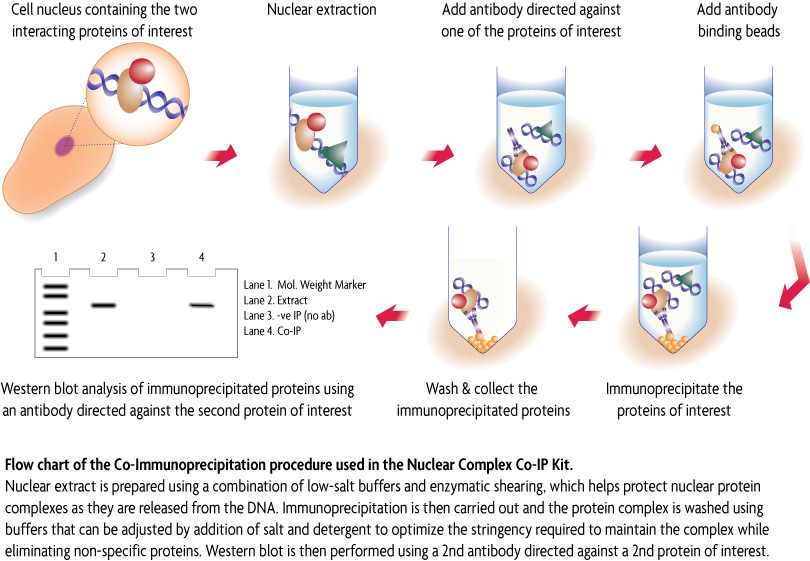

Flow chart of the Co-Immunoprecipitation procedure used in the Nuclear Complex Co-IP Kit

Figure 1: Flow chart of the Co-Immunoprecipitation procedure used in the Nuclear Complex Co-IP Kit.

Nuclear extract is prepared using a low-salt buffer and enzymatic shearing, which protects nuclear protein complexes and releases them from the DNA. Immunoprecipitation is then carried out and the protein complex is washed using buffers that whose stringency can be adjusted by addition of salt and detergent, which helps maintain the complex integrity while eliminating non-specific proteins. Western blot is then performed using a 2nd antibody directed against a 2nd protein of interest.

Co-IP Kit: Buffer Preparation and Recommendations
Approach IP Buffer 5M NaCl Detergent 5M NaCl for
Wash Buffer
1. No Supplements 1X High N/A N/A N/A
1X Low N/A N/A N/A
2. Addition of Salt 1X High 150 mM Final N/A N/A
1X Low 150 mM Final N/A N/A
3. Addition of salt and detergent 1X High 150 mM Final 1% Final N/A
1X Low 150 mM Final 1% Final N/A
4. Addition of salt and detergent, and extra salt for final Wash Step 1X High 150 mM Final 1% Final 300 mM Final
1X Low 150 mM Final 1% Final 300 mM Final



Contents & Storage

Please note that the Nuclear Complex Co-IP Kit is shipped on dry ice and contains reagents with multiple storage temperatures inside. Please store each component at the temperature indicated below. All reagents are guaranteed stable for 6 months from date of receipt when stored properly. Each Nuclear Complex Co-IP Kit supplies sufficient reagents to perform 50 co-immunoprecipitation experiments. This kit includes the following components:

  • Protease Inhibitor Cocktail (PIC); Store at -20°C
  • 100 mM PMSF; Store at -20°C
  • Enzymatic Shearing Cocktail; Store at -20°C
  • 1 M DTT; Store at -20°C
  • 10X Hypotonic Buffer; Store at 4°C
  • Phosphatase Inhibitors; Store at 4°C
  • 10X PBS; Store at 4°C
  • 0.5 M EDTA; Store at 4°C
  • Digestion Buffer; Store at 4°C
  • 5X IP High Buffer; Store at 4°C
  • 5X IP Low Buffer; Store at 4°C
  • BSA; Store at 4°C
  • Detergent; Store at RT
  • 5 M NaCl; Store at RT
